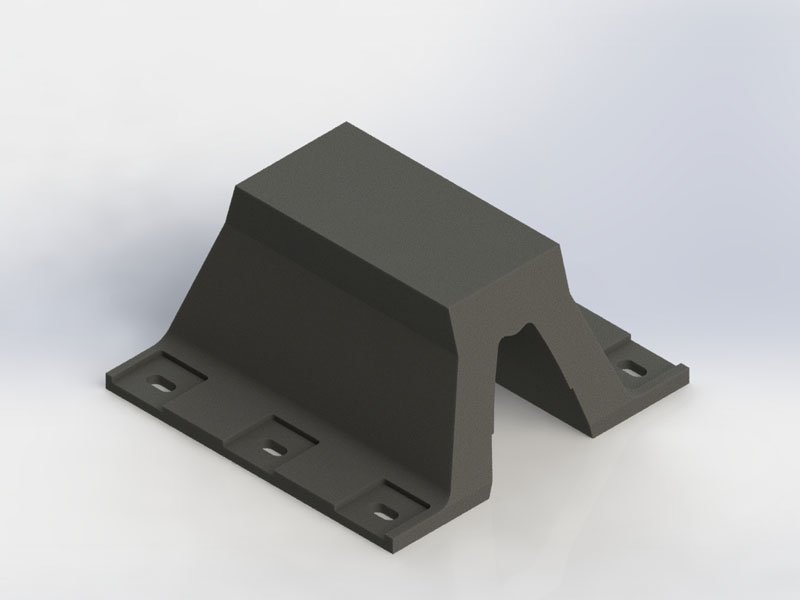

Arch Fender

arch-fender
Arch-fenders

A simple and effective solution for a wide range of marine environments, the arch fender is a robust, single-piece rubber molding. Its V-shape design provides high energy absorption and low reaction force, making it ideal for protecting quays, jetties, and vessels during berthing operations. Installation is straightforward, and the design requires minimal maintenance for a long service life.

Materials

EPDM Rubber SBR Rubber Natural Rubber (NR)

Key Features

  • High energy absorption
  • Low reaction force
  • Simple, rugged design
  • Easy installation
  • Low maintenance
Request Quote

Technical Specifications

Specifications(mm) H L L1 B B1 B2 B3 C Q h a b e f
JSA 150×1000 150 1000 1075 98 240 300 96 110 855 22.5 50 95 25 55
JSA 150×1500 150 1500 1575 98 240 300 96 112.5 675 22.5 50 95 25 55
JSA 150×2000 150 2000 2075 98 240 300 96 215 620 22.5 50 95 25 55
JSA 150×2500 150 2500 2575 98 240 300 96 220 785 22.5 50 95 25 55
JSA 150×3000 150 3000 3075 98 240 300 96 215 715 22.5 50 95 25 55
JSA 150×3500 150 3500 3575 98 240 300 96 220 671 22.5 50 95 25 55
JSA 200×1000 200 1000 1100 145 320 400 128 120 860 30 58 105 29 75
JSA 200×1500 200 1500 1600 145 320 400 128 120 680 30 58 105 29 75
JSA 200×2000 200 2000 2100 145 320 400 128 120 620 30 58 105 29 75
JSA 200×2500 200 2500 2600 145 320 400 128 122.5 785 30 58 105 29 75
JSA 200×3000 200 3000 3100 145 320 400 128 120 715 30 58 105 29 75
JSA 200×3500 200 3500 3600 145 320 400 128 120 672 30 58 105 29 75
JSA 250×1000 250 1000 1125 164 410 500 160 130 865 30 64 125 32 90
JSA 250×1500 250 1500 1625 164 410 500 160 132.5 680 30 64 125 32 90
JSA 250×2000 250 2000 2125 164 410 500 160 132.5 620 30 64 125 32 90
JSA 250×2500 250 2500 2625 164 410 500 160 127.5 790 30 64 125 32 90
JSA 250×3000 250 3000 3125 164 410 500 160 132.5 715 30 64 125 32 90
JSA 250×3500 250 3500 3625 164 410 500 160 130 673 30 64 125 32 90
JSA 300×1000 300 1000 1150 225 490 600 195 140 870 33 70 140 35 105
JSA 300×1500 300 1500 1650 225 490 600 195 140 685 33 70 140 35 105
JSA 300×2000 300 2000 2150 225 490 600 195 137.5 625 33 70 140 35 105
JSA 300×2500 300 2500 2650 225 490 600 195 140 790 33 70 140 35 105
JSA 300×3000 300 3000 3150 225 490 600 195 145 715 33 70 140 35 105
JSA 300×3500 300 3500 3650 225 490 600 195 140 674 33 70 140 35 105
JSA 400×1000 400 1000 1200 300 670 800 260 150 900 40 82 165 41 120
JSA 400×1500 400 1500 1700 300 670 800 260 150 700 40 82 165 41 120
JSA 400×2000 400 2000 2200 300 670 800 260 147.5 635 40 82 165 41 120
JSA 400×2500 400 2500 2700 300 670 800 260 150 800 40 82 165 41 120
JSA 400×3000 400 3000 3200 300 670 800 260 150 725 40 82 165 41 120
JSA 400×3500 400 3500 3700 300 670 800 260 150 680 40 82 165 41 120
JSA 500×1000 500 1000 1250 375 840 1000 325 160 930 45 94 180 47 140
JSA 500×1500 500 1500 1750 375 840 1000 325 160 715 45 94 180 47 140
JSA 500×2000 500 2000 2250 375 840 1000 325 157.5 645 45 94 180 47 140
JSA 500×2500 500 2500 2750 375 840 1000 325 160 810 45 94 180 47 140
JSA 500×3000 500 3000 3250 375 840 1000 325 165 730 45 94 180 47 140
JSA 500×3500 500 3500 3750 375 840 1000 325 160 686 45 94 180 47 140
JSA 600×1000 600 1000 1300 450 1010 1200 390 170 960 54 100 195 50 160
JSA 600×1500 600 1500 1800 450 1010 1200 390 170 730 54 100 195 50 160
JSA 600×2000 600 2000 2300 450 1010 1200 390 167.5 655 54 100 195 50 160
JSA 600×2500 600 2500 2800 450 1010 1200 390 170 820 54 100 195 50 160
JSA 600×3000 600 3000 3300 450 1010 1200 390 170 740 54 100 195 50 160
JSA 600×3500 600 3500 3800 450 1010 1200 390 170 692 54 100 195 50 160
JSA 800×1000 800 1000 1400 600 1340 1600 520 180 1040 72 136 270 68 260
JSA 800×1500 800 1500 1900 600 1340 1600 520 180 770 72 136 270 68 260
JSA 800×2000 800 2000 2400 600 1340 1600 520 180 680 72 136 270 68 260
JSA 800×2500 800 2500 2900 600 1340 1600 520 182.5 845 72 136 270 68 260
JSA 800×3000 800 3000 3400 600 1340 1600 520 180 760 72 136 270 68 260
JSA 1000×1000 1000 1000 1500 750 1680 2000 650 200 1100 90 136 290 68 300
JSA 1000×1500 1000 1500 2000 750 1680 2000 650 200 800 90 136 290 68 300
JSA 1000×2000 1000 2000 2500 750 1680 2000 650 200 700 90 136 290 68 300

Download Brochure

Arch Fender Datasheet

DOWNLOAD

Product Description

The Arch Fender is a proven, high-performance fendering solution designed for a multitude of applications, offering excellent energy absorption and reaction force characteristics. Its simple, one-piece construction provides exceptional durability and reliability in protecting both vessels and berthing structures from impact during mooring. Easy to install and virtually maintenance-free, these fenders are a cost-effective choice for long-term asset protection.

Key Advantages

  • High energy absorption: The fender’s unique arched shape is engineered to efficiently absorb the kinetic energy of berthing vessels, minimizing impact forces.
  • Low reaction force: It effectively dissipates energy, exerting minimal pressure back onto the ship’s hull and the dock structure, preventing damage.
  • Simple, rugged design: Manufactured as a single piece of high-quality rubber, the arch fender is inherently strong and resistant to the harsh marine environment, ensuring a long and trouble-free service life.
  • Easy installation: The fender can be installed both vertically and horizontally with basic bolting arrangements, making it a versatile and user-friendly option for various port and terminal layouts.
  • Low maintenance: Its robust construction and high-quality materials mean that the arch fender requires little to no maintenance, offering a “fit and forget” solution.

Ideal for general cargo berths, workboat harbors, and barge jetties, the arch fender is a versatile and economical choice. It is available in a range of sizes to suit different vessel types and berthing requirements. For applications requiring lower friction, the fender can be fitted with UHMW-PE face pads or steel panels.
