Cylindrical tug boat fenders

cylindrical tug boat fender

Engineered for the demanding conditions of tugboat operations, our Cylindrical Tug Fenders offer robust protection and superior durability. Commonly installed on the bow and stern, these fenders provide exceptional energy absorption during pushing and ship-to-ship maneuvering. Their flexible design conforms to various hull shapes, ensuring reliable performance in the harshest marine environments.

Materials

EPDM Rubber SBR Rubber Natural Rubber (NR)

Key Features

  • Adapts to hull radius
  • High abrasion resistance
  • Excellent resilience
  • Simple installation
  • Low maintenance

Technical Specifications

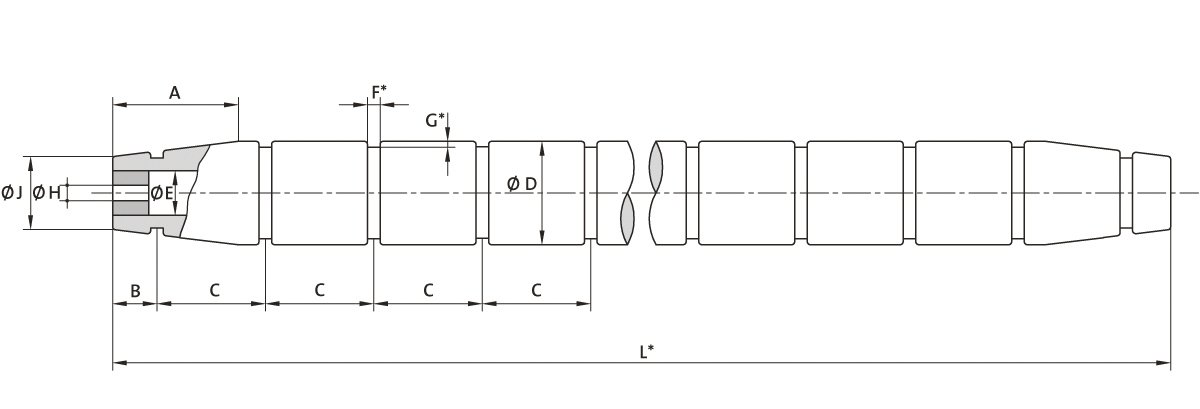

Ø D [mm] B [mm] C [mm] A [mm] Ø E [mm] Ø H [mm] Ø J [mm]
200 150 530 500 100 75 150
250 200 570 500 125 75 190
300 225 600 700 150 75 225
350 250 630 800 175 100 260
400 300 670 800 200 100 300
500 300 730 900 250 100 375
600 350 800 900 300 125 450
700 350 860 1,000 350 125 525
800 350 930 1,000 400 125 600
900 350 1,000 1,100 450 150 675
1,000 350 1,060 1,200 500 150 750

Product Description

Our Cylindrical Tug Boat Fenders are specifically designed to meet the rigorous demands of pushing, towing, and mooring operations. Manufactured from a high-performance, marine-grade rubber compound, these fenders offer exceptional resistance to abrasion, UV radiation, and saltwater degradation, ensuring a long service life with minimal maintenance.  Their cylindrical shape is ideal for making contact with vessels of various designs, from flared hulls to flat-sided ships, providing reliable and predictable performance.

Key Advantages

  • High Energy Absorption: The fender’s design allows for a proportional increase in reaction force and energy absorption, resulting in softer, more controlled berthing operations.
  • Versatile Application: Primarily used on the bow and stern of tugs, these fenders are also suitable for workboats and other vessels requiring robust hull protection during ship-to-ship and ship-to-quay operations.
  • Superior Durability: Constructed from a heavy-duty rubber compound, these fenders are built to withstand extreme operating conditions and provide long-lasting, reliable protection for your vessel.
  • Flexible Installation: Fenders can be installed using longitudinal chains, straps, or bars, allowing them to be securely fitted to the contours of the vessel’s hull for maximum stability and effectiveness.

Available in a wide range of diameters and lengths, our Cylindrical Tug Fenders can be customized to meet the specific requirements of your vessel. Tapered ends are also an option to ensure a seamless fit against the hull.

These fenders are engineered for straightforward installation and are a cost-effective solution for protecting your valuable marine assets.
