🏆 PIANC | ISO | ASTM | EN | IMO Certified

Delta Fender

Delta Fender

JettyGuard’s Delta Fenders offer a robust and cost-effective solution for protecting docks, jetties, and vessels. Their simple D-profile design provides moderate energy absorption and easy installation, making them ideal for tugboats, workboats, and general-purpose berthing applications where a reliable, low-maintenance fendering system is required.

Materials

EPDM Rubber

Key Features

  • Robust Delta-Profile
  • Simple Installation
  • Abrasion-Resistant
  • Versatile Mounting

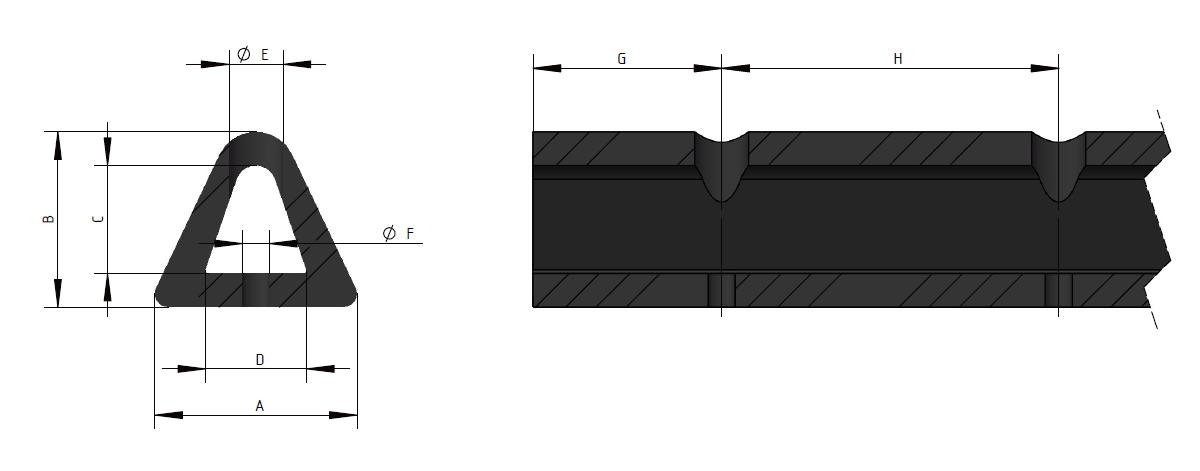

Technical Specifications

A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Flat bar Bolt size
60 50 40 30 20 10 70-110 150-250 15 x 3 M8
80 75 45 40 30 15 90-130 200-300 35 x 5 M12
110 100 65 68 30 15 90-130 200-300 40 x 5 M12
150 130 80 75 40 20 110-150 250-300 60 x 8 M16

*Other dimensions are available upon your custom request.

Product Description

JettyGuard’s Delta Fenders are engineered for reliability and performance in a wide range of marine environments. Characterized by their unique D-shaped profile, these fenders provide excellent protection for both structures and vessels by effectively absorbing impact energy during berthing. Their flat back makes them easy to install directly onto a quay wall or a ship’s hull, offering a straightforward and highly effective fendering solution.

Key Advantages

  • Robust Delta-Profile Design: Manufactured from a high-performance marine rubber compound, the Delta-shape provides a stable and strong facing that withstands repeated impacts and harsh environmental conditions.
  • Simple Installation: Featuring a flat rear face, Delta Fenders are easily and securely fastened to most surfaces with bolts, significantly reducing installation time and complexity.
  • High Abrasion Resistance: The tough outer surface is specifically formulated to resist abrasion, weathering, and degradation from UV radiation and saltwater, ensuring a long and reliable service life.
  • Versatile Mounting & Applications: Ideal for a variety of uses, these fenders can be installed on tugboats, workboats, small jetties, and pontoons, either horizontally, vertically, or curved around corners.

Whether outfitting a fleet of workboats or protecting a commercial marina, our Delta Fenders deliver exceptional value and durability. They serve as a primary fendering system for smaller installations or as a supplementary protective element on larger structures, ensuring assets are shielded from costly impact damage.
