ISO 13795 Double Bitt Deck Bollard
Our ISO 13795 Deck Bollard is a critical piece of deck hardware for any sea-going vessel, providing a robust and reliable anchor point for mooring and towing lines. Manufactured in strict accordance with ISO 13795 standards, this double bitt bollard is built from weldable steel plates and tubes with a minimum yield point of 235 N/mm², ensuring superior strength and a long service life. It is available in a wide range of nominal sizes and safe working loads (SWL) from 54KN to 1401KN to meet diverse operational requirements.
Key Advantages
- Certified Performance: Fully compliant with ISO 13795:2020 and certified by major classification societies like CCS, ABS, BV, and DNV, guaranteeing quality and adherence to international maritime standards.
- Robust Construction: Fabricated from high-tensile, weldable steel, these bollards offer exceptional stability and resistance to extreme loads encountered during mooring and towing operations.
- Enhanced Durability: Each bollard undergoes sandblasting to S2.5 and is coated with an epoxy shop primer, providing a premium anti-corrosion finish that withstands the harsh saltwater environment.
- Rope Protection: All surfaces in contact with mooring lines are meticulously finished to be free of imperfections, preventing rope abrasion and reducing wear and tear on your equipment.

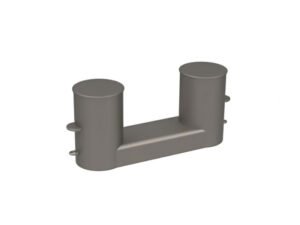

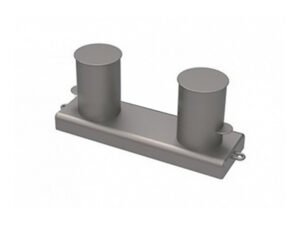

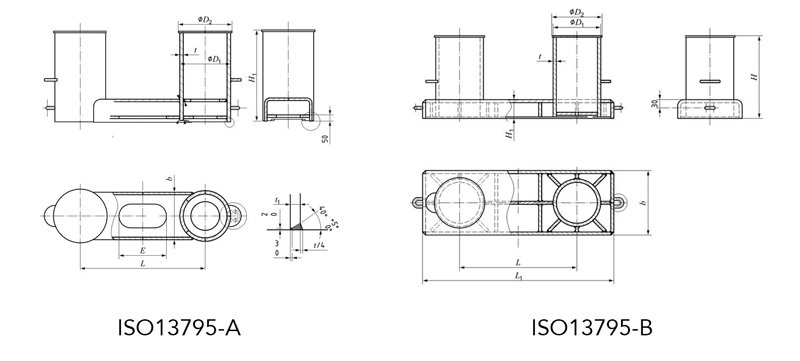

- Versatile Design: Available in Type A (compact base) and Type B (wide base) configurations to suit different deck structures and reinforcement needs, with integrated eye plates for stopping-off ropes.
Ideal for a wide range of vessels including commercial ships, navy vessels, and inland boats, our ISO 13795 Deck Bollards are essential for ensuring safe and secure mooring operations. Their design ensures that mooring lines are kept as low as possible to reduce strain on the posts, enhancing operational safety and efficiency. We offer a comprehensive range of sizes to meet the specific towing and mooring plans of your fleet.
