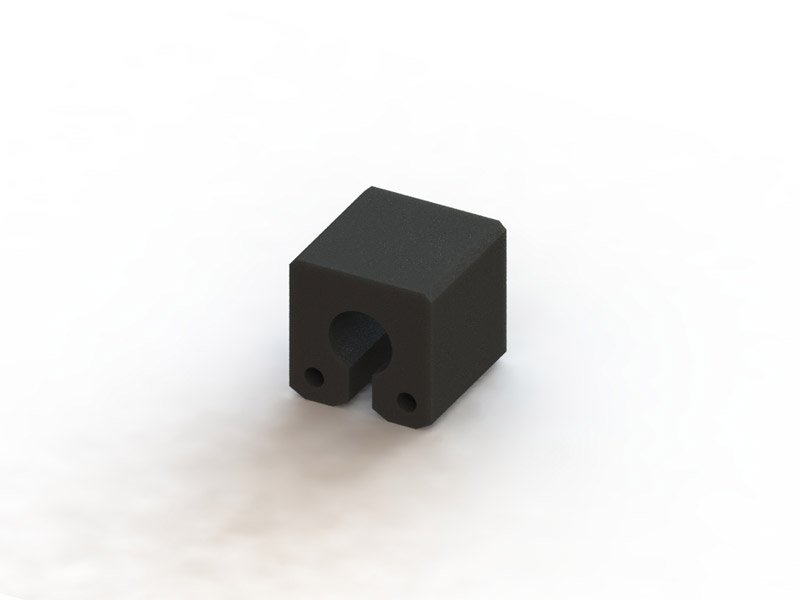

Keyhole fender block

keyhole fender block

Engineered for heavy-duty applications, the rubber keyhole fender block provides exceptional impact absorption for tugs, workboats, and quays. Its unique keyhole profile is designed to withstand massive forces and repeated impacts, ensuring reliable protection for vessels and marine structures. Manufactured from a highly durable, abrasion-resistant rubber compound, this fender block offers a long service life with minimal maintenance.

Materials

EPDM Rubber SBR Rubber Natural Rubber (NR)

Key Features

  • Easy installation
  • Weather resistant
  • Heavy-duty design
  • High energy absorption
  • Abrasion resistant

Technical Specifications

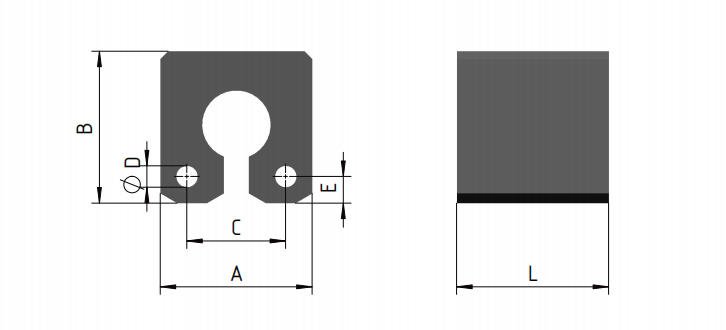

Keyhold fender block specification
A (mm) B (mm) C (mm) D (mm) E (mm)
Length max. (mm)
200 200 130 28 35 200
250 250 150 33 50 250
300 300 180 33 60 300
350 350 210 33 70 350

*Other size available upon request

Product Description

Our Rubber Keyhole Fender Blocks are a robust fendering solution designed specifically for high-impact environments such as harbors, jetties, and the bows of tugboats and workboats. The distinctive keyhole-shaped opening allows the fender to compress and absorb significant kinetic energy, reducing the force of impact on both the vessel and the docking structure. This design provides superior protection against repeated collisions and harsh marine conditions.

Key Advantages

  • Heavy-Duty Construction: Manufactured from a high-abrasion resistance rubber, these fender blocks are built to endure extreme wear and tear, providing long-lasting performance.
  • Superior Impact Protection: The unique keyhole profile is engineered to absorb massive forces, making it an ideal choice for applications with heavy berthing impacts.
  • Simple & Precise Installation: Featuring two mounting holes, these blocks are designed for straightforward and accurate installation on various surfaces, including curved hulls.
  • Versatile Application: Suitable for a wide range of uses, including protecting quays, pontoons, bridges, and the bows of vessels like icebreakers and large harbor tugs.

Available with a smooth or grooved face for varying grip requirements, our Keyhole Fender Blocks can be customized to meet specific project needs. They are highly resistant to UV radiation and environmental degradation, ensuring reliable protection in even the most demanding marine environments.
