Rubber SC Fender

rubber-sc-fender-3d

The Rubber SC Fender is an extruded, square-profile fender featuring a hollow circular bore. This design provides a blend of rigidity and flexibility, making it highly effective at absorbing impact energy while exhibiting a low reaction force. Its robust construction is ideal for protecting docks, quays, and vessels like tugboats and workboats during berthing operations, even under severe conditions.

Materials

EPDM Rubber SBR Rubber Natural Rubber (NR)

Key Features

  • Low reaction force
  • Durable construction
  • Easy to install
  • High wear resistance

Technical Specifications

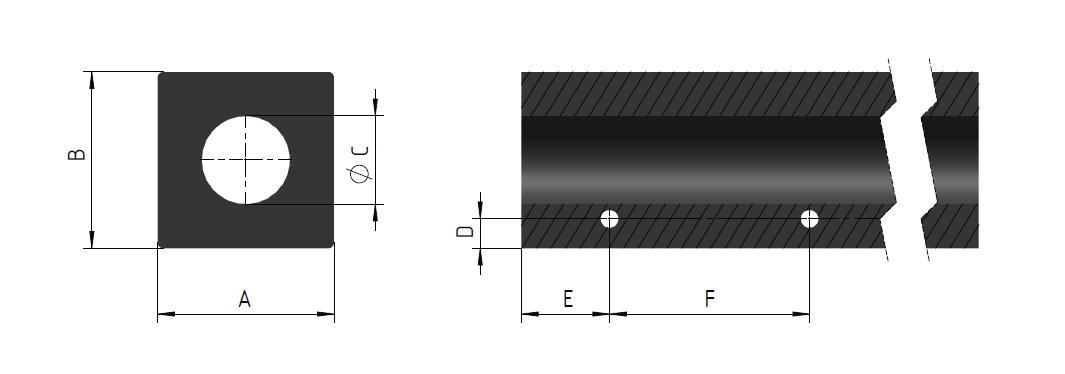

Rubber SC fender drawing
A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Flat bar Bolt size
100 100 30 25 90-130 200-300 50 x 6 M12
150 150 65 30 110-150 250-350 60 x 8 M16
200 200 75 45 130-180 300-400 80 x 10 M20
200 200 100 40 130-180 300-400 80 x 10 M20
250 200 100 45 140-200 350-450 90 x 10 M24
250 250 100 50 140-200 350-450 100 x 10 M24
300 250 100 50 140-200 350-450 100 x 10 M24
300 300 150 60 140-200 350-450 110 x 12 M24
350 350 175 65 140-200 350-450 120 x 12 M30
400 400 200 70 140-200 350-450 130 x 15 M30
500 500 250 90 150-230 400-500 150 x 20 M36

Product Description

The Rubber SC Fender, a type of square fender with a distinctive O-shaped inner chamber, is manufactured through extrusion to serve a wide range of maritime applications. Its design offers a superior combination of high energy absorption and low reaction force, making it an excellent choice for protecting both vessels and berthing structures from collision damage. This fender is engineered to withstand harsh marine environments and demanding use, making it a more robust alternative for severe conditions compared to standard D-type fenders.

Key Advantages

  • Versatile Application: Ideal for a variety of uses, including on quays, piers, pontoons, and as belting for tugboats, pilot boats, and other workboats.
  • Enhanced Durability: The circular bore provides extra wall thickness and strength, ensuring high wear resistance and a long service life even with frequent, heavy impacts.
  • Optimized Performance: The square profile coupled with the round hollow core allows for effective shock absorption and flexibility, protecting ship hulls and dock structures during mooring.
  • Simple Installation: SC Fenders are designed for straightforward installation and require minimal maintenance, ensuring operational efficiency and reduced downtime.

Constructed from a high-quality blend of natural and synthetic rubbers, our SC Fenders are resistant to UV degradation, saltwater, and extreme weather conditions. They can be customized to meet specific project requirements, with options for pre-curving, drilling, and specific lengths available to ensure a perfect fit for any application.
