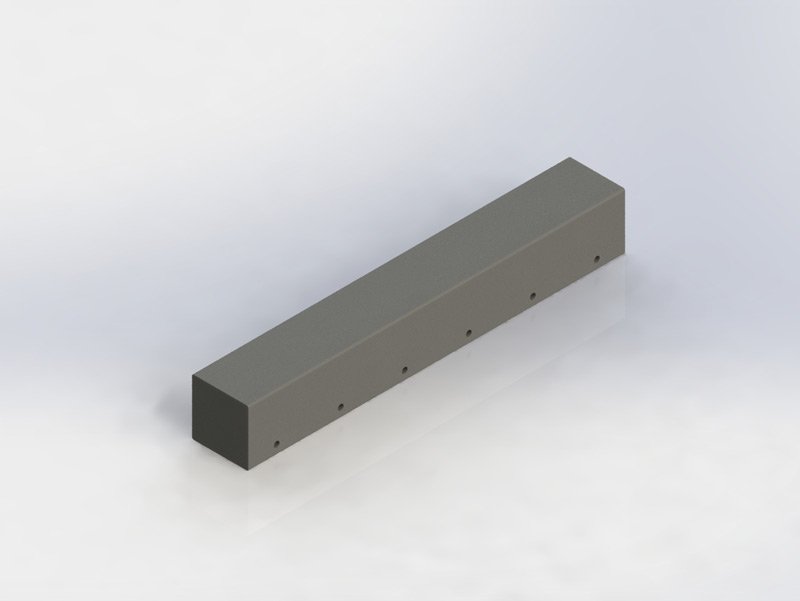

Solid Square Fender

Solid Square Fender

Engineered for heavy-duty applications, the Solid S Fender provides robust protection for vessels, quays, and marine structures. Its solid square profile offers superior rigidity and impact resistance compared to hollow designs, making it ideal for harsh conditions and high-energy berthing operations. This extruded rubber fender ensures maximum durability and wear resistance for long-term performance.

Materials

EPDM Rubber SBR Rubber Natural Rubber (NR)

Key Features

  • Versatile Mounting
  • Extreme Durability
  • Weather Resistant
  • Simple Installation
  • High Impact-Resistance

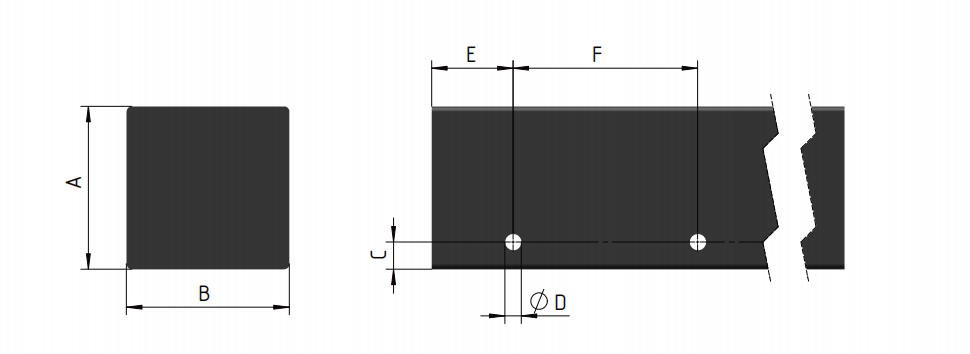

Technical Specifications

A (mm) B (mm) C (mm) D (mm) E F Flat bar Bolt size
100 100 25 15 90–130 200–300 50 x 6 M12
150 150 30 20 110–150 250–350 60 x 8 M16
200 200 40 25 130–180 300–400 80 x 10 M20
250 250 50 30 140–200 350–450 100 x 10 M24
300 300 60 30 140–200 350–450 110 x 12 M24
350 350 65 35 140–200 350–450 120 x 12 M30
400 400 70 35 140–200 350–450 130 x 15 M30

Product Description

Our Solid S Fender, also known as a square fender, is a fundamental component for any marine docking and vessel protection system. Manufactured through a high-pressure extrusion process, this fender is designed to withstand severe operating conditions. Its solid rectangular profile provides greater stiffness and energy absorption than hollow alternatives, making it the preferred choice for environments where impacts are frequent and substantial. Ideal for tugboats, workboats, quay walls, and loading bays, this fender offers exceptional resilience and a long service life.

Key Advantages

  • High Impact-Resistance: The solid rubber construction is engineered to absorb and dissipate significant berthing forces, protecting both the vessel and the docking structure from damage.
  • Extreme Durability: Made from a high-quality rubber compound, it exhibits excellent resistance to abrasion, weathering, UV radiation, and seawater, ensuring reliability in demanding marine environments.
  • Versatile Mounting: Solid S Fenders can be installed horizontally or vertically to suit various applications. They can be drilled, cut to length, and even pre-curved to match the bow or stern radius of a ship.
  • Low Maintenance: The tough, resilient material requires minimal upkeep, reducing long-term operational costs and ensuring consistent protection without frequent replacements.

Constructed from premium natural rubber or SBR compounds, our Solid S Fenders meet rigorous industry standards. They are available in a wide range of sizes to accommodate different vessel types and berthing energy requirements. For specialized applications, they can be supplied in custom lengths or non-marking compounds.
