High-Performance Foam Fenders

Ultimate reliable collision protection for your vessels and berths

01 Unsinkable Design

02 Ultra-Strong Skin

03 Maintenance-Free

04 International Standards

View Technical Specs Download Brochure (PDF)

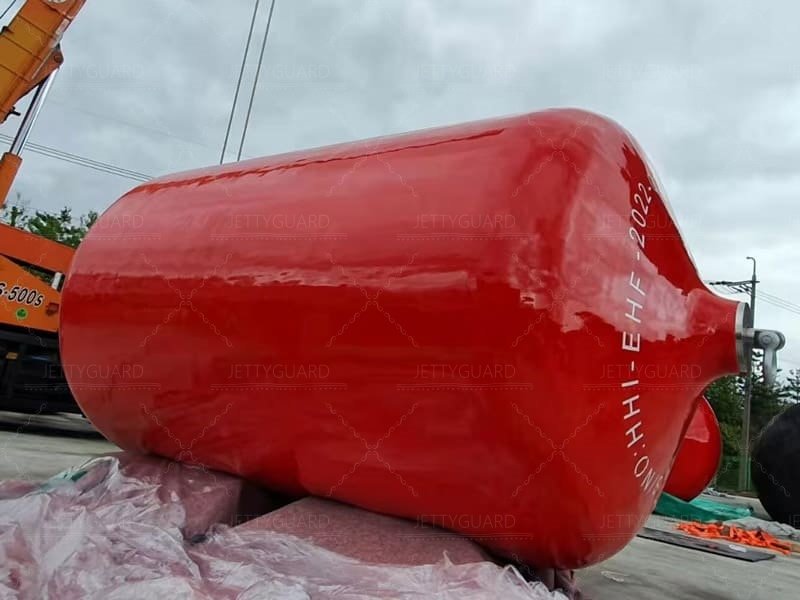

Jettyguard Foam Fenders installed at berth

Product Overview

What are Jettyguard Foam Fenders?

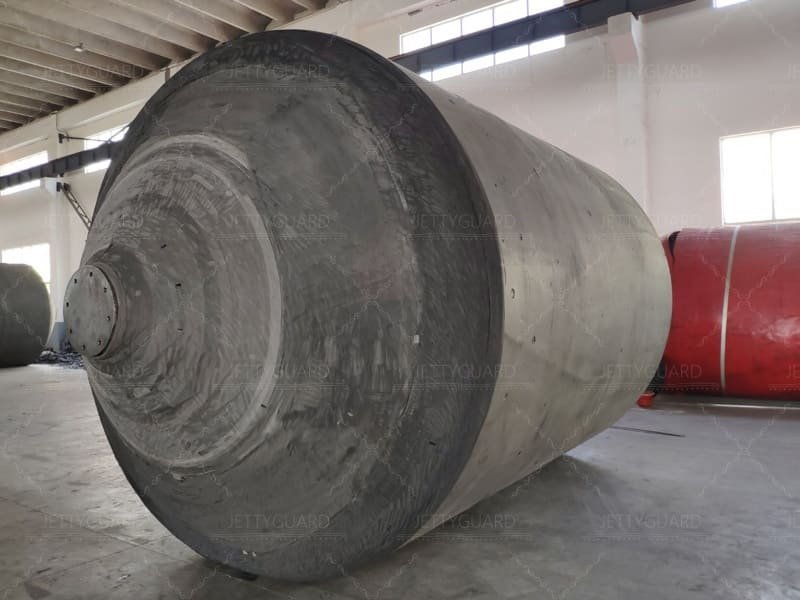

Foam Fender Structure -- closed-cell EVA foam core

Jettyguard foam fenders feature a closed-cell EVA foam core with reinforced polyurethane outer skin, manufactured by our experienced team with over 5 years of industry expertise and strict quality control.

Performance Comparison

Feature

Jettyguard Foam Fenders

Traditional Pneumatic Fenders

Internal Structure

Closed-cell foam solid

Compressed air

Damage Risk

Low (damage won't affect use)

High (failure after air leak)

Maintenance

Maintenance-free

Regular pressure checks required

Reaction Force

Progressive (low to high)

High initial contact pressure

Technical Data

Technical Parameters & Performance Data

D × L (mm)	LR EA (kNm)	LR RF (kN)	SC EA (kNm)	SC RF (kN)	HC EA (kNm)	HC RF (kN)	EHC EA (kNm)	EHC RF (kN)
	Low Reaction	Low Reaction	Standard Cap.	Standard Cap.	High Cap.	High Cap.	Extra High Cap.	Extra High Cap.
300 × 500	--	--	--	--	--	--	--	--
500 × 1,000	7	42	10	67	14	79	19	112
600 × 1,200	9	53	15	89	19	116	28	169
1,000 × 1,500	28	102	47	173	61	227	83	323
1,000 × 2,000	41	151	68	254	88	329	123	480
1,200 × 2,000	54	169	91	280	118	365	172	534
1,200 × 2,500	72	222	121	369	157	480	228	703
1,200 × 3,000	96	294	160	489	207	632	302	925
1,350 × 2,500	91	249	152	415	197	543	287	732
1,500 × 3,000	146	356	244	596	317	774	464	1,130
1,700 × 3,000	169	369	282	618	366	801	536	1,174
2,000 × 3,500	273	507	454	845	591	1,099	864	1,606
2,000 × 4,000	324	601	540	1,005	701	1,303	1,025	1,904
2,200 × 4,000	386	653	643	1,088	836	1,415	1,222	2,068
2,200 × 4,500	447	757	746	1,263	969	1,640	1,416	2,397
2,500 × 5,500	623	916	1,022	1,516	1,398	1,943	1,899	2,795
3,000 × 5,000	879	1,072	1,464	1,788	1,904	2,326	2,782	3,398
3,000 × 5,500	1,022	1,250	1,704	2,082	2,217	2,705	3,239	3,954
3,000 × 6,000	1,167	1,423	1,946	2,375	2,530	3,087	3,697	4,515
3,000 × 6,500	1,312	1,601	2,187	2,669	2,842	3,470	4,154	5,071
3,300 × 4,500	899	1,014	1,498	1,690	1,948	2,193	2,847	3,207
3,300 × 6,500	1,452	1,637	2,421	2,731	3,148	3,550	4,600	5,187
4,000 × 8,000	2,636	2,629	3,793	3,711	5,227	5,189	6,973	6,921
4,500 × 9,000	3,436	3,408	4,779	4,726	6,586	6,533	8,785	8,729
6,000 × 8,000	5,274	5,893	7,320	8,139	9,520	11,318	12,910	14,520

* Custom sizes and performance grades available based on project requirements (High Energy Absorption / Low Reaction Force types). LR = Low Reaction · SC = Standard Capacity · HC = High Capacity · EHC = Extra High Capacity

Need Custom Specifications? Contact Our Engineers

Manufacturing

Precision Manufacturing, Exceptional Quality

Material Inspection

High-strength steel & composite materials

Foam Core Molding

Closed-cell EVA foam formation

PU Coating

Thermal spray polyurethane process

Flange Assembly

Welding & precision assembly

Quality Testing

Dimensional & performance verification

Our production team has over 5 years of experience with independent QC department, ensuring every product exceeds customer expectations.

Applications

Wide Range of Applications

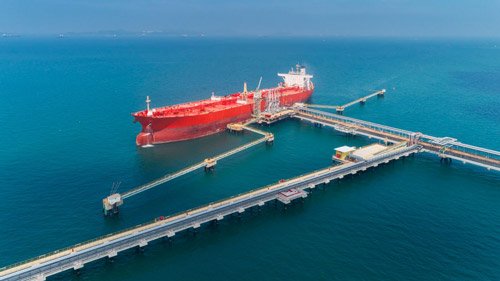

Oil & Gas Terminal -- foam fender protection for tankers

Oil & Gas Terminals

Explosion-proof and oil-resistant properties for tanker protection

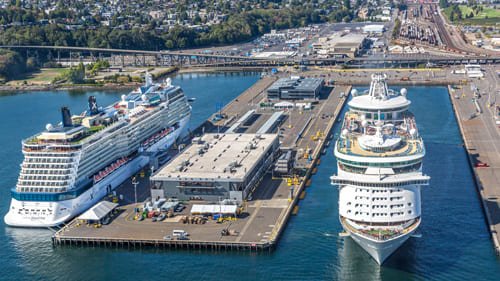

Cruise Terminal -- low reaction force fenders protecting hull paint

Cruise Ship Berths

Low reaction force with non-staining skin to protect hull paint

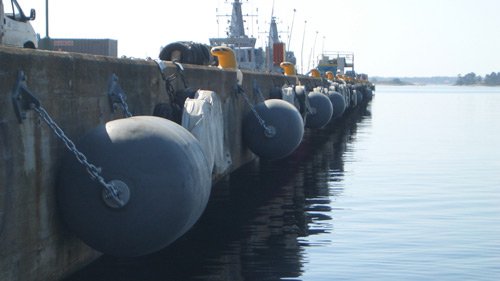

Naval Berth -- high reliability military standard fenders

Naval Berths

High reliability meeting military standards

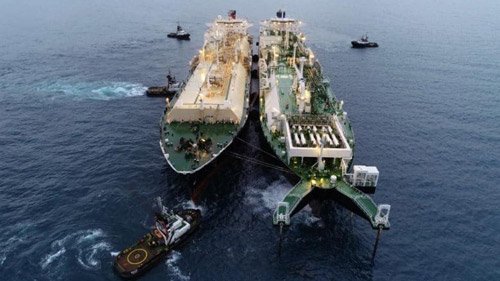

Ship-to-Ship Operations

Lightweight and easy deployment for offshore operations

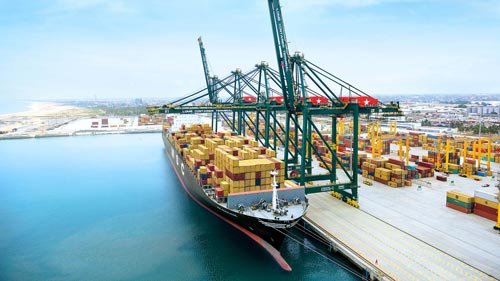

Container Terminal -- heavy-duty foam fender protection for large vessels

Container & Bulk Cargo

Heavy-duty protection for large commercial vessels

RoRo & Ferry Terminal -- consistent performance for frequent berthing

RoRo & Ferries

Frequent berthing operations with consistent performance

Project References

Our Success Stories

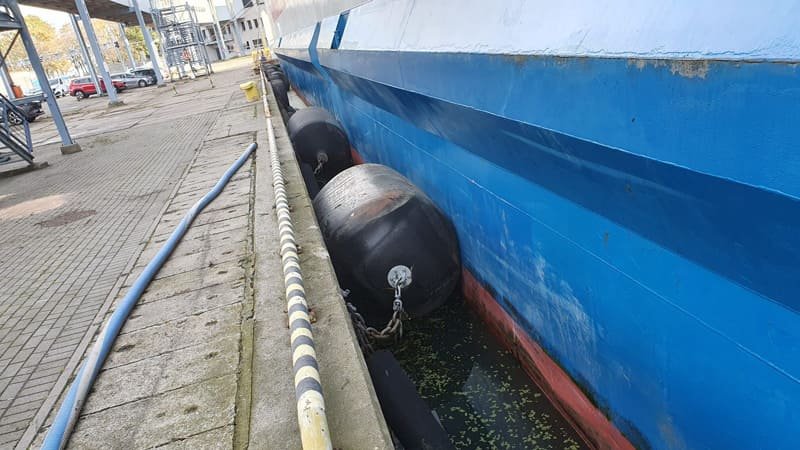

European Ferry Terminal Upgrade -- JGF series foam fender installation

European Ferry Terminal Upgrade Project

Challenge

Large tidal range with severely aged existing fenders

Solution

Custom-sized JGF series foam fenders installation

Result

Significantly improved berth safety and efficiency, highly praised by port owner

"The Jettyguard foam fenders exceeded our expectations in both performance and durability."
-- Port Operations Manager

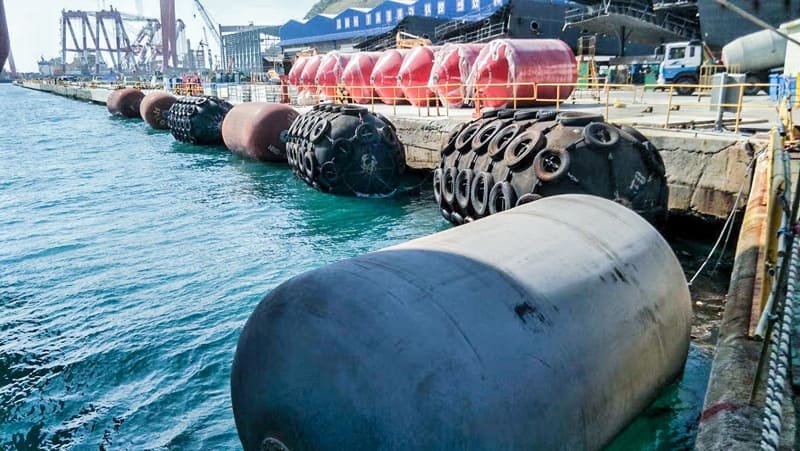

Major Shipyard Protection System

Challenge

Harsh marine environment requiring zero-maintenance solution

Solution

High-performance foam fenders with enhanced SPUA coating

Result

3+ years maintenance-free operation, significant cost savings

"Outstanding reliability in extreme conditions. Best investment for our operations."
-- Marine Engineering Director

Quality & Compliance

Why Choose Jettyguard?

ISO

International Standards

PIANC, ISO, ASTM, EN & IMO compliant. Inspection records, pressure data, and manufacturing documentation available.

Strict Quality Control

Independent QC department with 5+ year experienced production workers. Factory checks, packing photos, and shipment handover files.

Custom Solutions

General arrangement drawings and project-specific technical files. Global shipping & support from Chongqing / Qingdao.

Inquiry

Get Your Foam Fender Solution Today

Send vessel data for engineering review: vessel size, berth condition, quantity, required standard, delivery port, and drawings if available.
